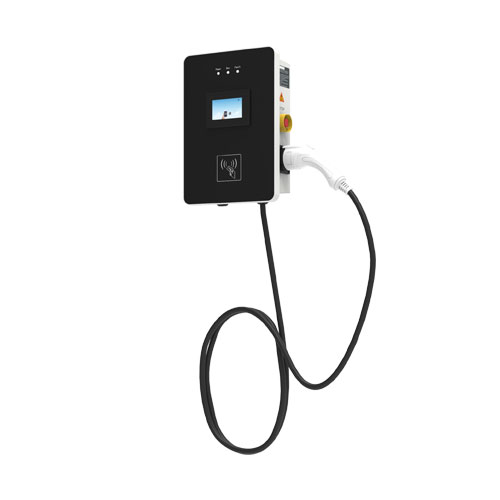

HG Power AC charging stations cover 7 kW to 44 kW in wall-mounted, column, and floor-standing formats — an ideal solution for offices, apartments, hotels, fleet depots, and public parking.

Technical specifications

• Charger type: AC, 7 kW / 11 kW / 22 kW / 22–44 kW
• Supply: single-phase (220/240 V) or three-phase five-wire (380 V) ±15%
• Max current: 16 / 32 / 50 A (single output), up to 32/64/100 A on 44 kW floor model
• Connector: Type 1 / Type 2 / GB-T / NACS (optional)
• Protocol: OCPP 1.6 / OCPP 2.0.1 (optional), Ethernet / 3G / 4G / WiFi
• Authentication: RFID card, QR code, password login, 4.3″ / 7″ colour screen
• Protection: IP55, flame-retardant ABS housing; over-current, over/under-voltage, residual current, surge, leakage, short-circuit, over-temperature
• Environment: −25 to 55 °C, 5–95% humidity, natural cooling

Series: Galaxy (entry) and Stellar (connected). Metering by consumption units for tenant or per-user billing.
