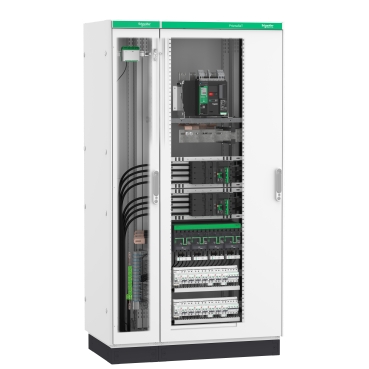

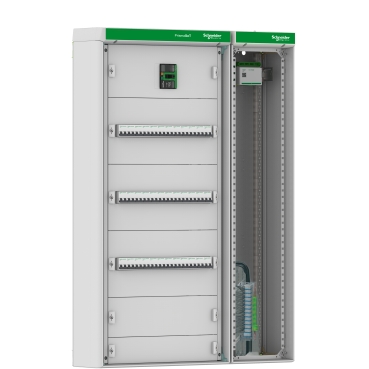

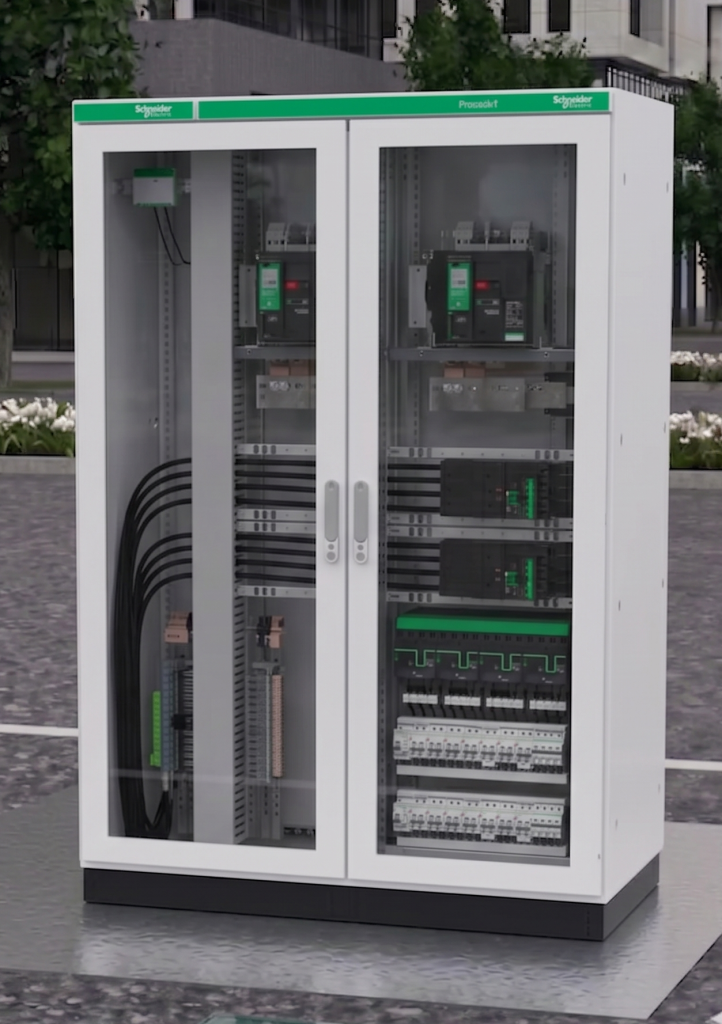

Schneider PrismaSeT LV Panel

Model PrismaSeT P 4000A

Capacity 4000 A

Mechanical characteristics
b Steel sheet.
b Surface treatment: electrophoresis + hot-polymerised polyester epoxy powder, white colour
RAL 9003.
b Degree of protection:
□ IP30/31, IK08
□ IP55, IK10.
b Dimensions of the dedicated cubicle for the Masterpact MTZ2:
□ W = 650 mm
□ D = 600 mm (front connection) or 1000 mm (rear connection)
□ H = 2000 mm.
b Inside cubicles.
Electrical characteristics
b Rated insulation level of main busbars: 1000 V.
b Rated operational current: see table below.
b Rated peak withstand current: Ipk up to 220 kÂ.
b Rated short-time withstand current: Icw up to 100 kA rms/1 s.
b Frequency: 50/60 Hz.
b Compliant with standards IEC 61439-1 & 2.
b Form 1 (covers for upstream and downstream terminals on all devices).
In a dedicated incoming cubicle, it is not necessary to cover the busbars.

Product Description
