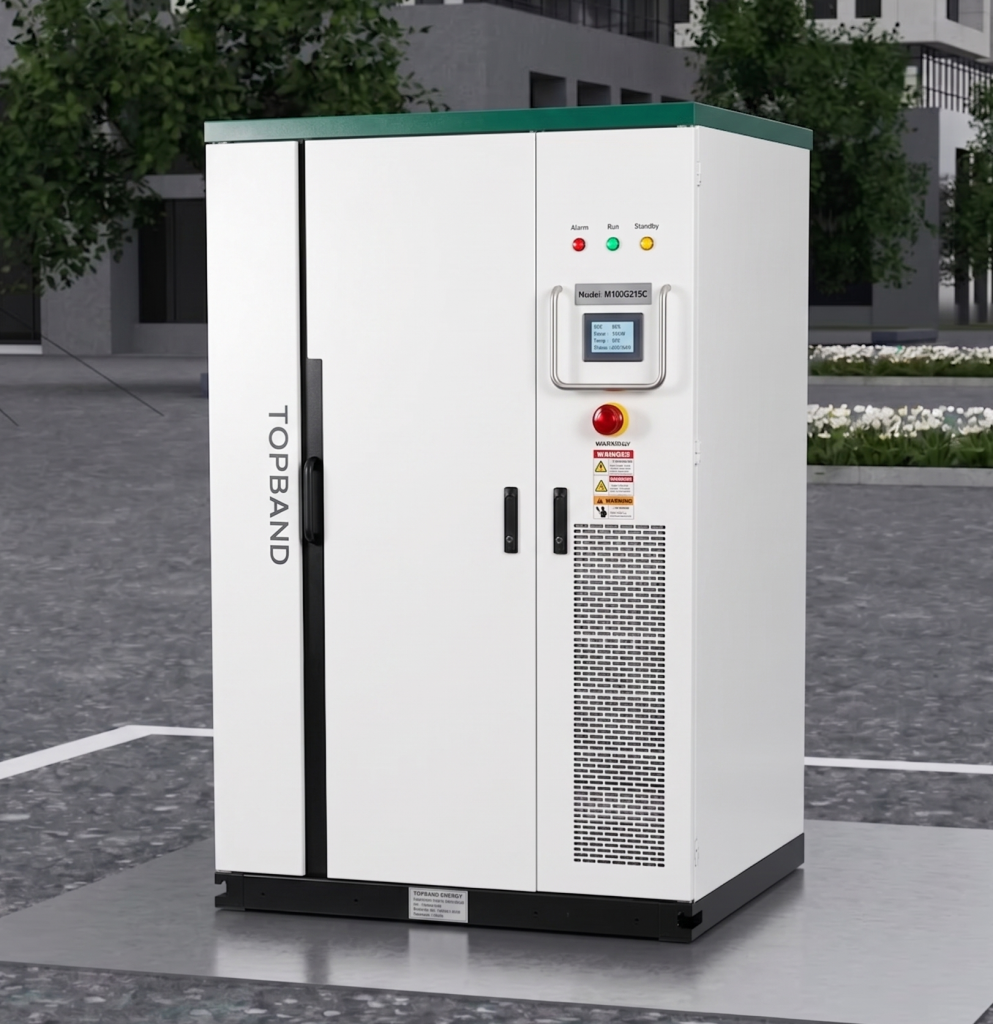

The Topband M100G215C is a modular commercial & industrial BESS: 100 kW/215 kWh all-in-one cabinets that parallel into MW-scale clusters, up to the 1 MW/2.15 MWh 40 ft container — with seamless on/off-grid switching for backup power.

Technical specifications

• Unit: M100G215C all-in-one, 100 kW / 215 kWh (integrated PCS, EMS, STS)
• Scaling: up to 20 units parallel on-grid, 6 units off-grid; container AIO 1 MW / 2.15 MWh (40 ft)
• Switching: on/off-grid STS transfer <20 ms (10 ms STS)
• Modes: on-grid (PQ), off-grid (VF), black start, peak shaving & valley filling, demand response
• Cooling: air cooling; optional PV MPPT control
• Certification: Cabinet IEC 62619 / CE / UN38.3; PCS IEC 62109/62477/61727/62116/61000, EN50549, G99; Container UN38.3 / UN3536
• Applications: grid scheduling, active/reactive power compensation, new-energy grid integration, C&I backup
